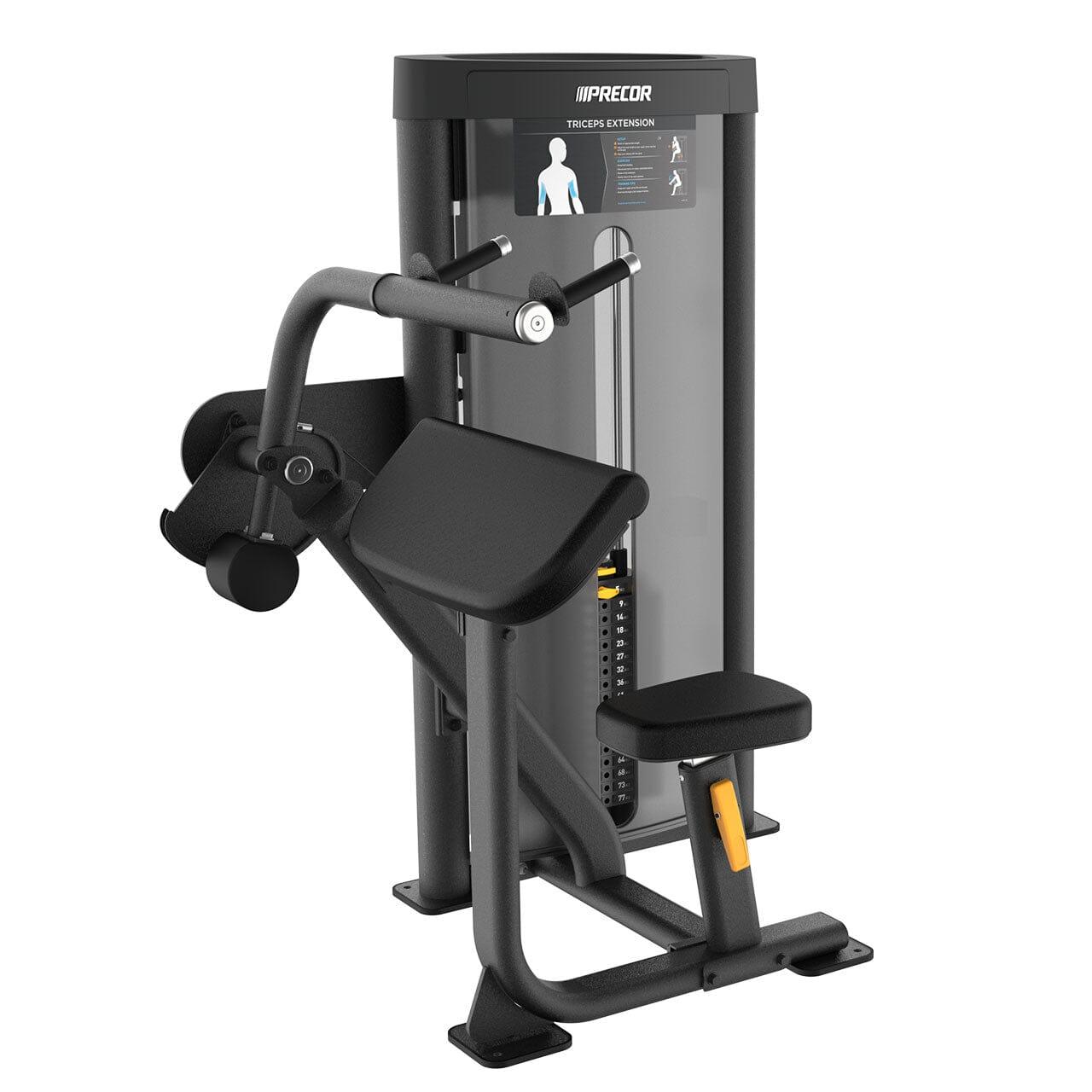

Precor Vitality Series Tricep Extension (C023ES)
Precor Vitality Series Tricep Extension (C023ES)
The Vitality™ Series Tricep Extension delivers sound biomechanics by featuring a preacher curl position with comfortable, auto-adjusting hand grips with ergonomic press pad. Single seat adjustment ratchets for proper exercise positioning. Users can easily engage the add-on weight with a simple push of a lever to increase the work load.
Approachable & Intuitive — Built to satisfy all levels of exercisers in your facility, the Vitality Series creates an open and inviting environment within a facility with a consistent low-profile tower height, translucent shrouds, and precision adjustments that make it easy and comfortable for exercisers to get the right fit. Built to Perform Long Term — The Vitality Series meets the demands of facilities and exercisers with durable, welded frames that can hold up to the pressure. Part of a Complete Package — It all fits within the Precor package, providing you with a consistent feel in your facility.
Product Features
Optimal DesignThe angle of the seat and the arm handle provides the optimal position for stability and muscle engagement.
Trailing Arm DesignThe precise design of the arm allows it to adjusts with the user's body through the range of motion. The pivoting handles move with body to provide a consistent feel and resistance.
Simple Single AdjustmentThe unit only requires one adjustment for position and comfort. This allows the user to get in and be properly set up with little time needed.
SPECIFICATIONS
Equipment Features
| Instructional Placard | Simple step-by-step instructions for users of all levels to help with setup and exercise, including tips to help maximize workouts. |
| Weight Stack |
Weight plates are 1 inch (25 mm) thick, machined cast weight plates in 10 lb (5 kg) and 15 lb (7 kg) sizesfitted nylon bushings to ensure smooth travel on guide rods. Top weight plate is machined cast weight plate designed for a 10 lb (5 kg) starting weight. Precision, lubricated bushings for smooth operation. Guide rods are 3/4 inch (19 mm) diameter steel, polished with corrosion-resistant plating for smooth operation and rust prevention. Low starting weight and full weight range accommodate a wide range of users. Weight stack is easily accessible from the seated position. |
| Upholstery | Fabric is premium-quality industrial vinyl with a protective coating that results in long-lasting, easy-to-clean upholstery pads and rollers. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Construction features a 4-piece design with a 3/4 inch thick plywood back, 3/4 inch high-density foam base, 3/4 inch high-density foam core and industrial fabric cover. Total thickness is 2.5 inches (65 mm). |
| Adjustments | Quick and easy ratcheting seat adjustment with easy to identify seat position numbering, |
| Water Bottle and Accessories Holder | Top cap secures the front and back shrouds and includes an accessories shelf and 4 inch (102 mm) diameter water bottle holder. |
| Bearings and Pivot Points |
ABEC-rated sealed bearings for added durability and smooth feel. |
| Pulleys and Cables | Glass-fiber-reinforced nylon pulleys with deep V-groove provide secure cable seating and fluid bearing rotation. Cables are military spec 5 mm cable coated. |
| Frame and Finish |
11 gauge (2.75 mm) 2x4-inch (50 x 100 mm) tubing is bent electroweld steel. Finish is electrostatically applied, heat-cured powder coat for superior durability. |
| General Features | Adjustable chest pad and seat height for desired start position. Comfortable grips with multiple hand positions. |
Equipment Specifications
| Incremental Add-on Weight | 5 lb / 2.5 kg |
| Standard Shroud Color | Translucent |
| Optional Upholstery Colors | All Spice American Beauty Black Blue Jay Burgundy Deep Clay Grey Hunter Green Navy New Purple Regal Blue Slate |
| Weight Stack | 240 lb / 110 kg |
| Workout Area (L x W) | 50 x 47 inches / 127 x 119 cm |
| Standard Frame Color | Gloss Metallic Silver |
| Standard Upholstery Color | Black |
Equipment Dimensions and Weight
| Length | 56 in / 142 cm |
| Width | 48 in / 122 cm |
| Height | 70 in / 178 cm |
| Equipment Weight | 464 lb / 211 kg |
Shipping Dimensions and Weight
| Length | 70 inches / 178 cm |
| Width | 44 inches / 112 cm |
| Height | 33 inches / 84 cm |
| Shipping Weight | 567 lb / 257 kg |
Regulatory
| EN957 | Yes |
| ASTM | Yes |
WARRANTY
- 10-year - frame/welds
- 1 year -Surface Finish
- 5-years - Parts
- 6 months - Limited Parts
- 1-year - labor
