Precor RBK 685 Recumbent Bike (P84)
Precor RBK 685 Recumbent Bike (P84)
Precor
The Experience™ Series 600 Line are professional recumbent stationary bikes featured in corporate wellness studios, personal training studios, multi-family complexes, and physical therapy centers that strikes the optimal balance between durability, reliability, and innovation. The 600 Line of recumbent bikes feature simple seat adjustments and a ventilated air flex seat that provides exceptional comfort. The single-sided pedals are integrated with pedal straps that comfortably accommodate feet of all sizes and allow for proper pedaling form. The 600 Line of recumbent bikes features three models, RBK 635, RBK 665, and RBK 685. The difference between each model is the console (P30, P62, or P82) and is available in a black frame.

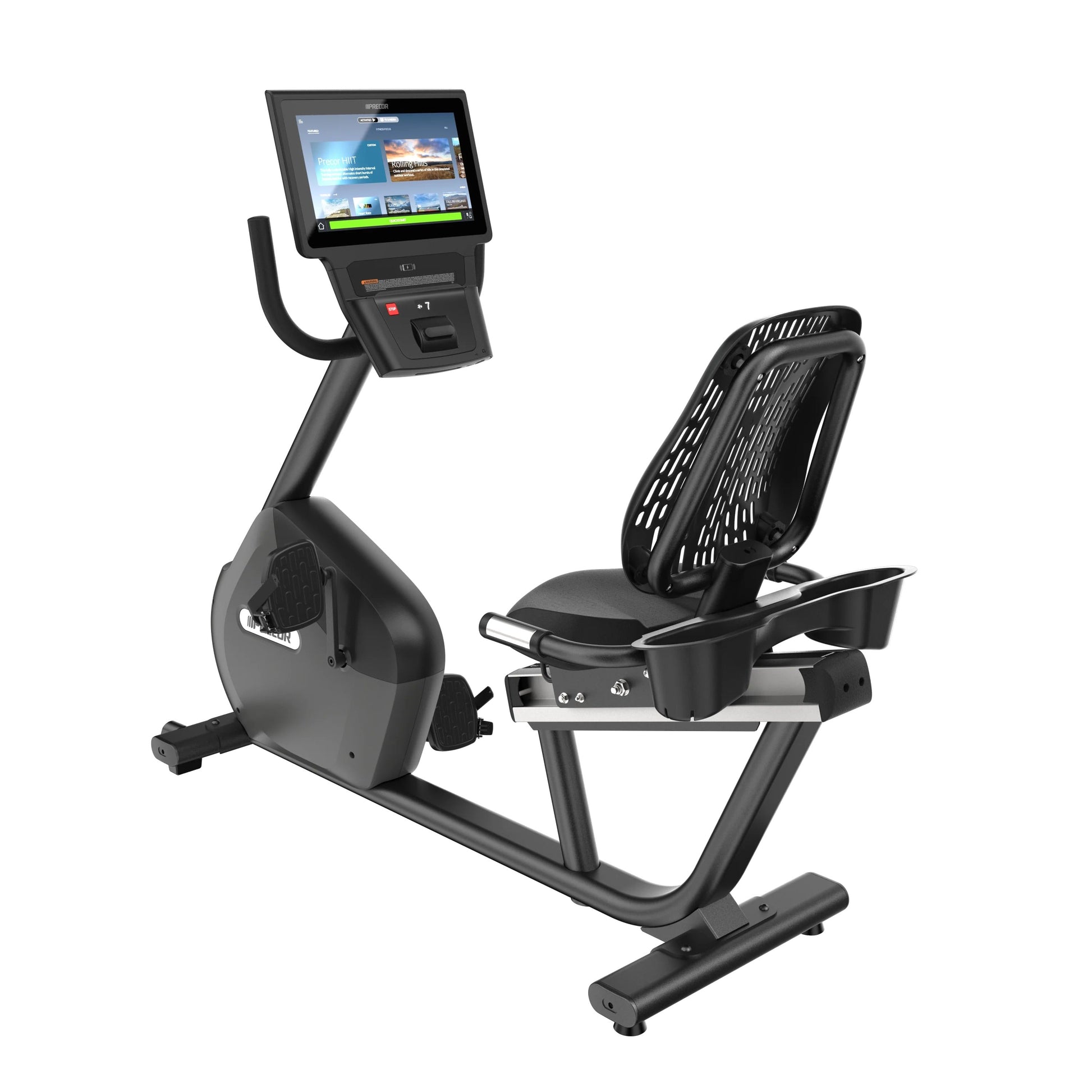

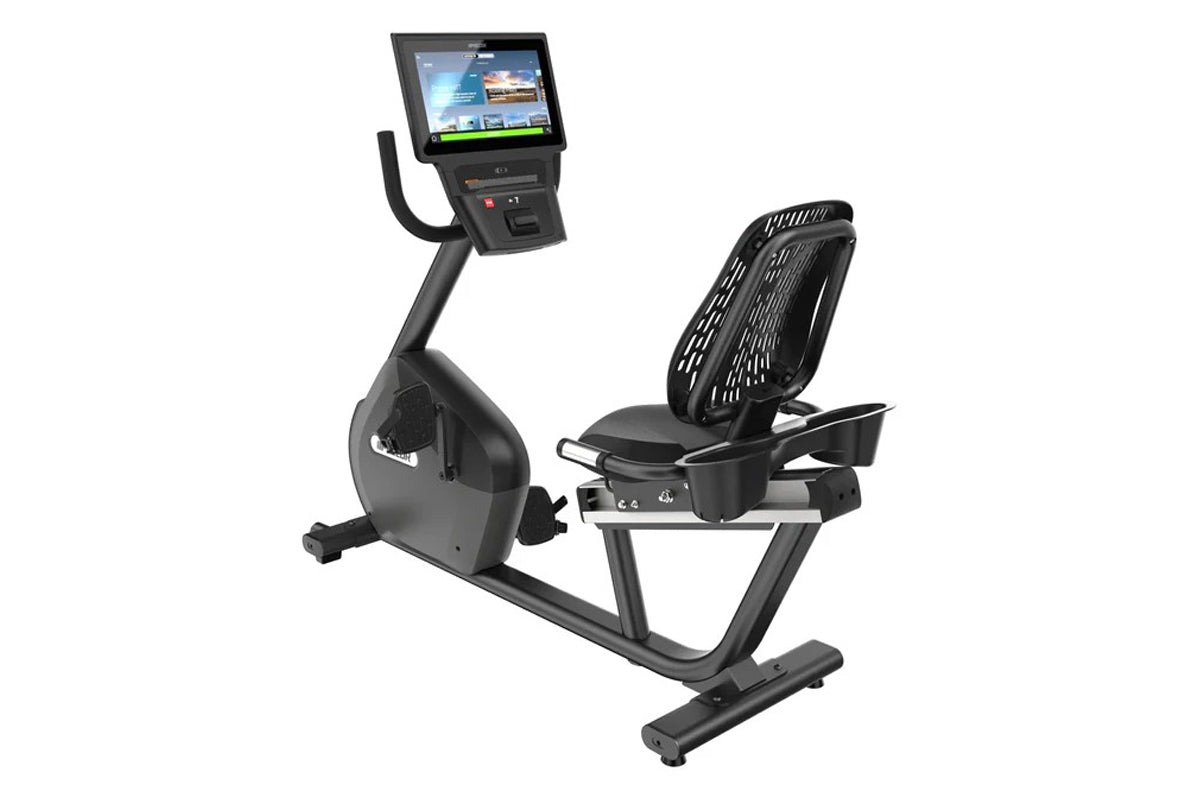

The RBK 685 recumbent bike features a step-through design to appeal to a wide range of exercisers. The simple seat adjustment allows the exerciser to change the position of the seat with one hand, either on or off the bike. A ventilated air flex seat provides exceptional comfort. This bike is a cost-effective option for a broad range of environments such as corporate gyms, apartment complexes, and fire departments.

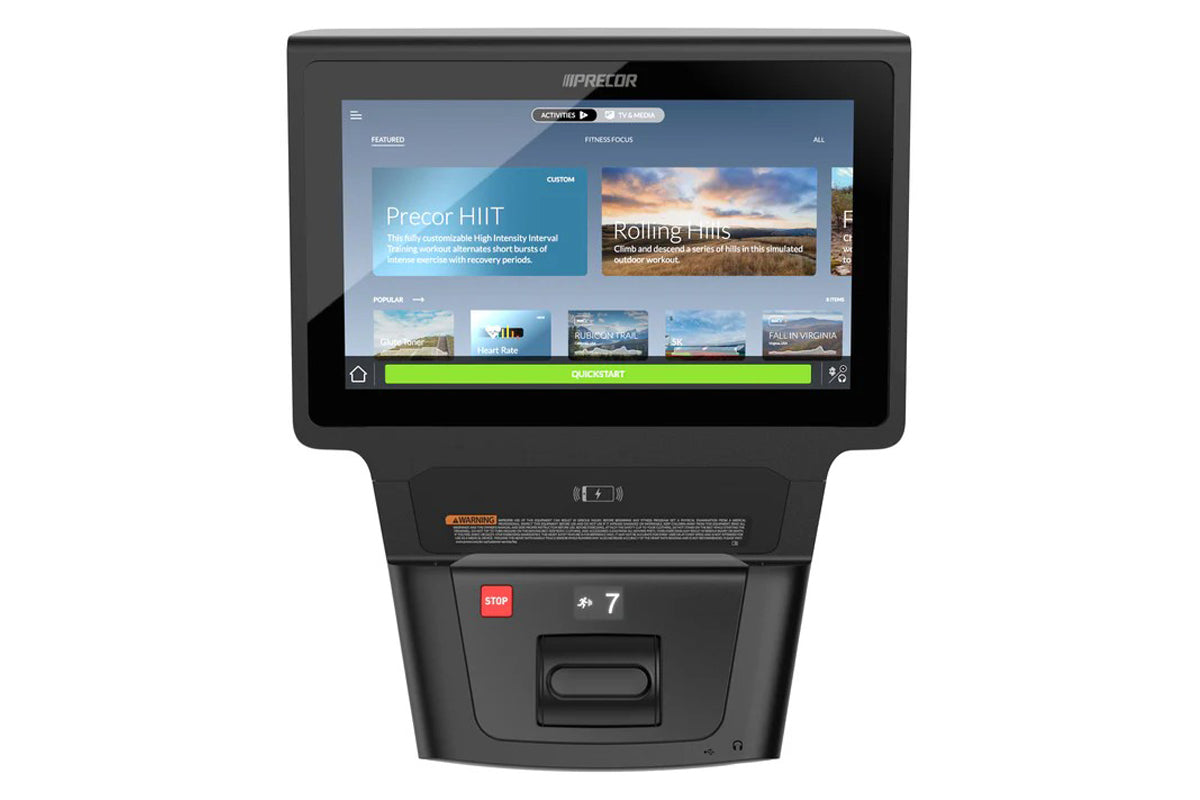

P84 Touchscreen Console
The P84 console offers a brilliant 16-inch touchscreen that provides the best blend of performance, fitness, and entertainment that your exercisers expect. It’s designed to deliver a best-in-class content suite with engaging workouts, wireless casting with access to thousands of third-party workout and media apps, and integrated Pluto TV, so exercisers always have the content they want, right at their fingertips.
Step-through Design
Designed for easy entry, the recumbent bike has a step-through design (14 in / 36 cm wide) with a low step-over height (4 in / 10 cm).
Air Flex Seat Back
The custom-designed air flex seat features a ventilated panel and unique suspension system for a cool, cushioned ride.
Seat Adjustment
The simple seat adjustment allows the exerciser to change the position of the seat with one hand, either on or off the bike.
Ease of Maintenance
The easy-to-remove shrouds ensure quick access to the beltdrive system for maintenance and servicing without removing the pedals or crank arms.
Pedals
The extra wide pedals comfortably accommodate feet of all sizes and feature integrated, adjustable straps to ensure proper pedaling form.
PrecorCast (ChromeCast) is not supported for Residential Use. Streaming is limited to Netflix and YouTube (credentials are not saved between workouts). Contact precor.com for Commercial Installations.
[SPECIFICATION]
Equipment Features
| Covers | Covers are attached with minimal hardware and can be removed without taking off the pedals or cranks. |
| Cable Management | Optional |
| Accessories Holder(s) | Yes |
| Transport Wheels | Integrated |
| Biomechanics | To achieve proper pedaling biomechanics, Precor designed the recumbent bike to maintain similar biomachines as developed for the upright bike. That means setting the angle of the seat rail with an offset from the crank to aid with efficient pedaling and reduced shear force on the knee. The seat rail angle is at 15 degrees with a slight offset from the crank axle. This places the knee directly over the ball of the foot (or pedal spindle) when the pedals are in the 2 and 8 o'clock positions. |
| Frame | Two-step powder-coating process on steel frame. |
| Seat | The new, compact molded seat back features a "floating" suspension system that allows the seat back to move with the user for unsurpassed comfort. The ergonomic, curved design and ample ventilation further enhance user comfort, and the polypropylene material is virtually indestructible. |
| Bearings | Pedal axles and bearings are designed for smooth operation and exceptional service life. |
| Seat Adjustment | The simple seat adjustment allows the exerciser to change the position of the seat with one hand, either on or off the bike. |
| Handlebars | The console handlebars help with entry and exit, while the riding handle bars provide optional hand and arm positioning and heart rate monitoring. |
| Pedals | Over-sized, single-sided pedals with integrated pedal strap comfortably accommodates feet of all sizes, which allows proper pedaling form. The weighted pedals allow for easy placement of foot on the pedal. |
| Step-Through Design | The RBK 685 recumbent bike features a step-through design with a very low step-over height. |
| Ergonomics | The riding cockpit is designed with sound ergonomics. The seat pads are angled for optimal comfort, maximum low-back support, and minimal interference with the movement of the exerciser's legs. The console is mounted at an optimal viewing angle, with the machine controls within easy reach. |
Resistance System
| Minimum Watts | 22 (level 1 at 20 RPM) |
| Maximum Watts | 500 (level 25 at 150 RPM) |
| Resistance Levels | 25 |
| 3-Piece Crank | 3-piece compact crank assembly tightens positively, reducing the need for periodic adjustments. The 170 mm crank arm accepts any standard road or mountain bike pedal. |
| Drive System | The single stage drive system is designed to yield smooth, quiet operation and a consistent resistance progression. |
| 3-Phase Generator | 3-phase generator / eddy current resistance system requires no backup battery in order to efficiently power the bike. |
| Belt Drive | Belt drive for smoother, quieter operation and reduced maintenance. |
Console Features
| Display Type | 15 in / 38.1 cm LCD Capacitive Touch Screen |
| Electronic Readouts | Resistance Level Total Distance, Distance Remaining Total Calories Burned, Calories/Min, Calories/Hr, Mets, Watts Time Elapsed, Time Remaining, Time in Zone, Segment Time RPM, Speed, Average Speed Heart Rate, Average Heart Rate, Max Heart Rate |
| Numeric Keypad | Yes |
| Motion Controls | Yes |
| Tactile Dome Keys | Yes |
| QuickStart™ | Yes |
| Console Language(s) | English, Chinese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish |
| Units Selection | Metric and U.S. Standard |
| Maximum Pause Time (Pause) | 300 seconds (adjustable) |
| Preset Programs |
Lose Weight 4-3 Interval Aerobic Fat Burner Heart Rate Zone Be Fit Manual 1-1 Interval 2-1 Interval 4-1 Interval Rolling Hills Mountain Peaks Hill Climb Heart Rate Zone Push Performance 1-4 Interval 1-2 Interval 5 K Heart Rate Zone Watts Target |
| Maximum Workout Time | 120 minutes (adjustable) |
Heart Rate Monitoring
| Touch | Touch heart rate sensors located conveniently on handlebars next to seat. |
| Telemetry | Integrated telemetry heart rate reads heart rate from a user's 5 KHz HR chest strap. |
| Heart Rate Sensor Advisory |
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions. |
Integrated Entertainment Options
| Closed Captioning | Yes, CC1-4, Text 1-4 (North America only) |
| Video decoding | MPEG-2, MPEG-4, H.264 |
| Global TV Support | Integrated tuner - NTSC, ATSC, PAL, SECAM, DVB-T/T2/C |
| Mobile Device Charger | Yes |
| Reading Rack | Integrated |
| Personal Viewing Screen (PVS) (Specification) | Integrated |
| Video inputs | RF, HDMI (media adapter option) |
| Entertainment Cap / Wireless Receiver | N/A |
Network Capabilities
| RFID / NFC | ISO/ISEC 14443A MIFARE, NFC P2P and R/W modes (future) |
| Ethernet | 10/100/1000 Base-T |
| Diagnostics | Ability to set club parameters, e.g. to limit exercise time and pause time. |
| CSAFE Enabled | N/A |
| Wifi | 802.11 a/b/g/n, 2.4 GHz MIMO and 5 GHz multiple antenna operation |
| Bluetooth | Bluetooth 4.0 (Bluetooth 2.0 plus BTLE) (future) |
Equipment Specifications
| Maximum User Weight | 350 lb / 159 kg |
| User Height Range | 58 to 78 inches / 147 to 198 cm |
| Standard Frame Colors | Black Pearl |
Equipment Dimensions and Weight
| Height with PVS | N/A |
| Length | 65 in / 165 cm |
| Width | 23 in / 58 cm |
| Height | 52 in / 132 cm |
| Machine Weight (base equipment) | 179 lb / 81 kg |
Shipping Dimensions and Weight
| Length | 66 in / 168 cm |
| Width | 23 in / 58 cm |
| Height | 28 in / 71 cm |
| Shipping Weight | 203 lb / 92 kg |
Power Requirements
| Equipment | ~100-240V 50/60Hz 1.6 Amps |
| Personal Viewing Screen (PVS) | N/A |
| Optional Power Supply | N/A |
