Precor

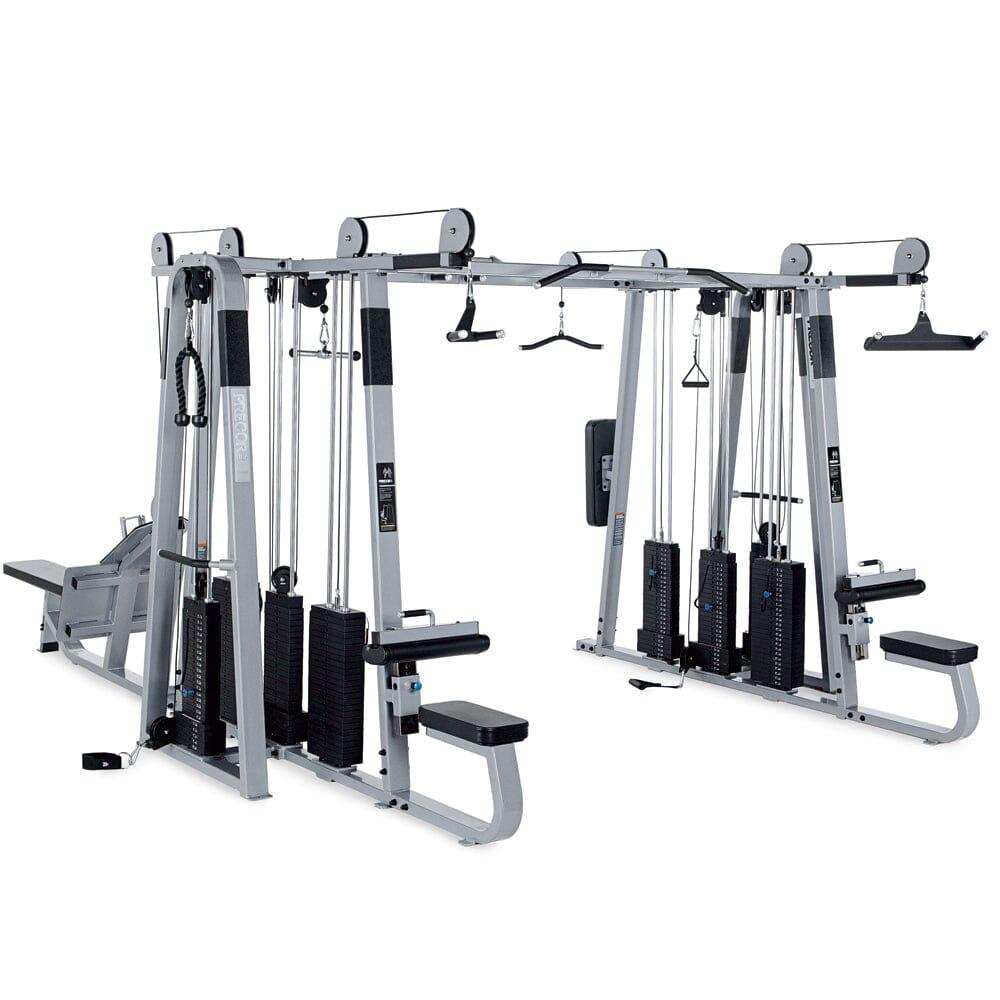

Precor Icarian Multi-Station Gym (820)

Precor Icarian Multi-Station Gym (820)

Regular price $20,140.00
Regular price Sale price $20,140.00
Sale Sold out

Special Order Only. 4-8 Week Lead Time.

DESCRIPTION

With attention to biomechanics, comfortable touch points, and easy-to-use adjustments, our Icarian® Line of strength training equipment helps exercisers of all abilities benefit from strength training. To complement your facility, every machine is durable, streamlined and intuitive.

The 820 Multi-Gym is an 8-stack, 10-station machine that delivers maximum versatility for facility users. The cable crossover station has fixed high pulleys, standing and seated triceps pushdown stations, pulldown and longpull stations, and two pulley stations with fixed high and low pulleys for a wide variety of exercises.  Our Icarian products are highly durable, a long lasting investment for your facility.

Product Features:

  • 8 stack, 10 station configuration
  • Simple and Intuitive to use
  • Maximum fitness options in minimum space

Approachable & Intuitive - With low profile weight stack tower, QR codes with instructional videos and ergonomic design, this line will welcome every exerciser and allow them to get started without a hitch.

Part of a Complete Package - All the design and performance qualities are consistent to that of our cardio products, giving you the ability to provide a fluid exerciser experience.

Built to Perform Long Term - Heavy powder-coated steel, oversized welded frames and industrial grade upholstery guarantees these strength pieces will be long-time members in your facility.

SPECIFICATIONS

Equipment Features

Bolts Grade 5 black zinc in most applications.
Upholstery Premium-quality upholstery with Beautyguard protective topcoat finish. Fabric meets or exceeds California fire regulations (Bulletin 117, section E). Double-layer slipcover in appropriate high wear areas. Double stitching on all seams.
Padding 2-inch 8-lb high-density foam.
Cable Routing Wherever possible, redirection pulleys are used to route cables close to frame to minimize chance of external interference.
Handles Slip-resistant rubber sleeve with machined alloy end-cap.
Weight Stack On most selectorized units, the weight stack is elevated 5 inches to facilitate user pin selection from seated position.
Selector Plates Each selector plate entirely precision machined on all surfaces. Top plate has replaceable Igus precision self-lubricating bushings. Black painted protective finish.
Pivot Points and Joints Pillow block or flange-mount motor-grade rotary bearings or sleeve bearings utilizing either oil-impregnated bronze bushings or pre-lubricated Igus nylon bushings.
Bearings and Pivot Points Oversized linear reticulating ball bearings are self-aligning, sealed and running on casehardened shafts.
Pulleys and Cables Glass-fiber-reinforced nylon pulleys with precision motor-grade ball bearings. 3/16-inch (7x19) aircraft cable coated with black pressure-extruded nylon to 1/4 inch or 1/8 inch coated to 3/16 inch. The cable will conform to specification MIL-W-83420D-BARE cable only. Attachments are climbing-rated carabiner design.
Frame and Finish 11 gauge (.120"") and 7 gauge (.188"") 2x4-inch bent electroweld steel tubing. Minimum of 3 standard bolt tabs on appropriate units. Electrostatically applied, heat-cured powder coat.
Guide Rods Guide rods are precision centerless ground, polished, with corrosion-resistant plating for smooth operation and retardation of rust.
Seat Adjustment Hardened plunger and snap-pin assembly with easy-grip pull-pin and ""slide"" insert for easy movement of adjustment.

Equipment Specifications

Options Rubber Feet
Standard Frame Colors Gloss Metallic Silver
Metallic Ash
Desert Bronze
Black Magic Gloss
Gloss White
Black Pearl
Stocked Upholstery Colors All Spice
American Beauty
Black
Blue Jay
Burgundy
Deep Clay
Grey
Hunter Green
Navy
New Purple
Regal Blue
Slate

Equipment Dimensions and Weight

Length 183 inches / 465 cm
Width 158 inches / 402 cm
Height 92 inches / 234 cm
Equipment Weight 3251 lb / 1475 kg



WARRANTY
  • 10-year - frame/welds
  • 1 year -Surface Finish
  • 5-years - Parts
  • 6 months - Limited Parts
  • 1-year - labor
