Precor Discovery Series Smith Machine (DPL0802)
Precor Discovery Series Smith Machine (DPL0802)
Regular price
$5,450.00
Regular price
Sale price
$5,450.00
Unit price
per
The bold, sleek design of the Discovery™ Series Smith Machine features high head clearance and a clean, walk-through design. The 11-degree angle of the Smith Machine and innovative bar design produces a smooth, natural feel and an exceptional user experience.
- Clean, bold walk through design
- 11 degree frame angle
- Low start weight of 25 lb. / 11.3 kg and 20% less high wear parts.
[SPECIFICATION]
Equipment Features
| Standard Features | ● Adjustable safety stops easily accessed from the user position ● Six weight plate storage horns ● Foot pads and heavy duty levelor device acomodates uneven floor surfaces |

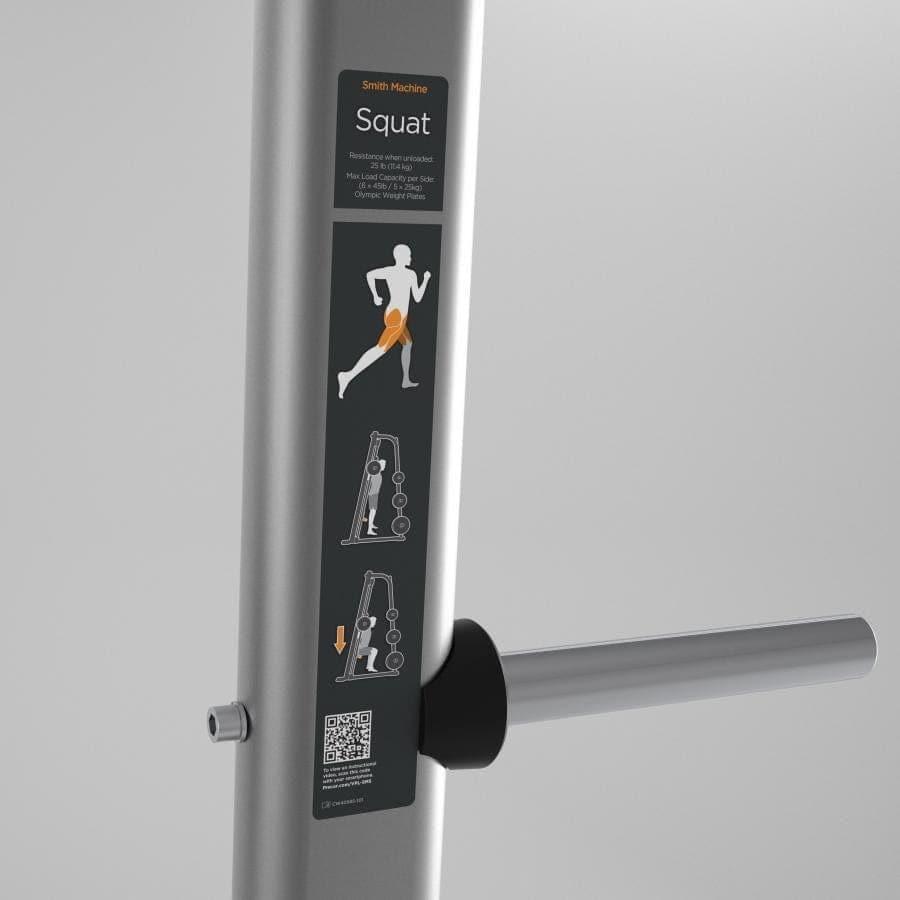

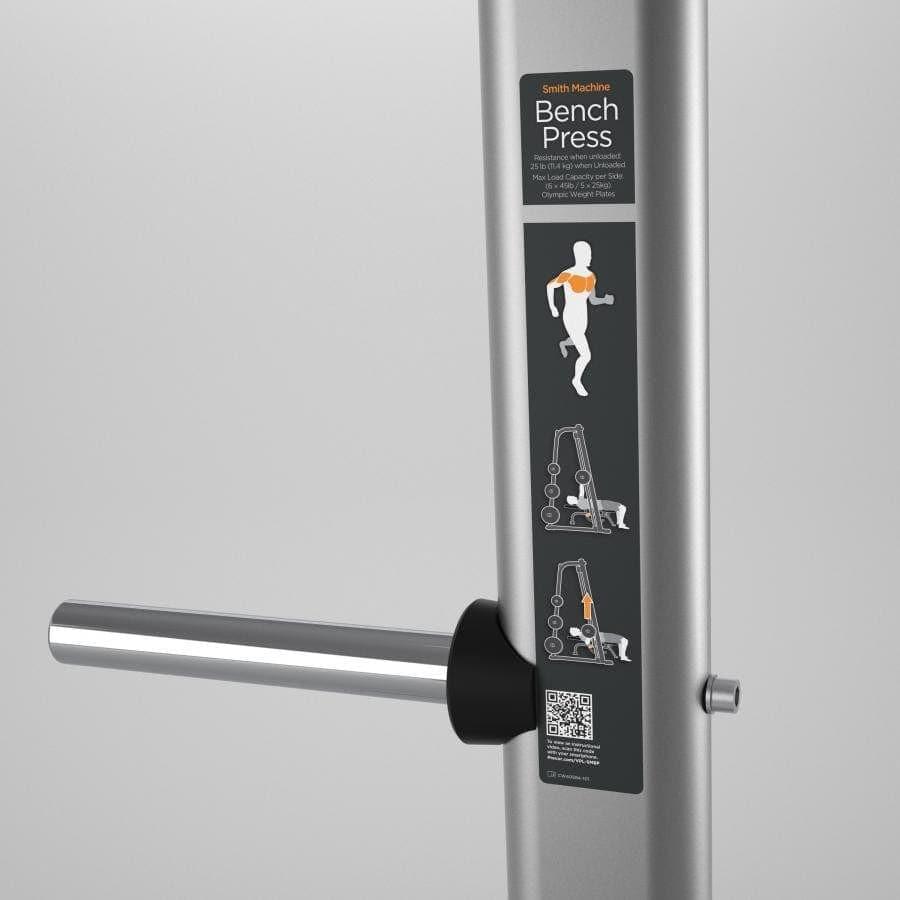

| Instructional Placard | Easy to understand exercise placards feature large set-up and start and finish position diagrams that are visibly easy to identify. QR codes provide quick and easy video instruction from your smart phone. |

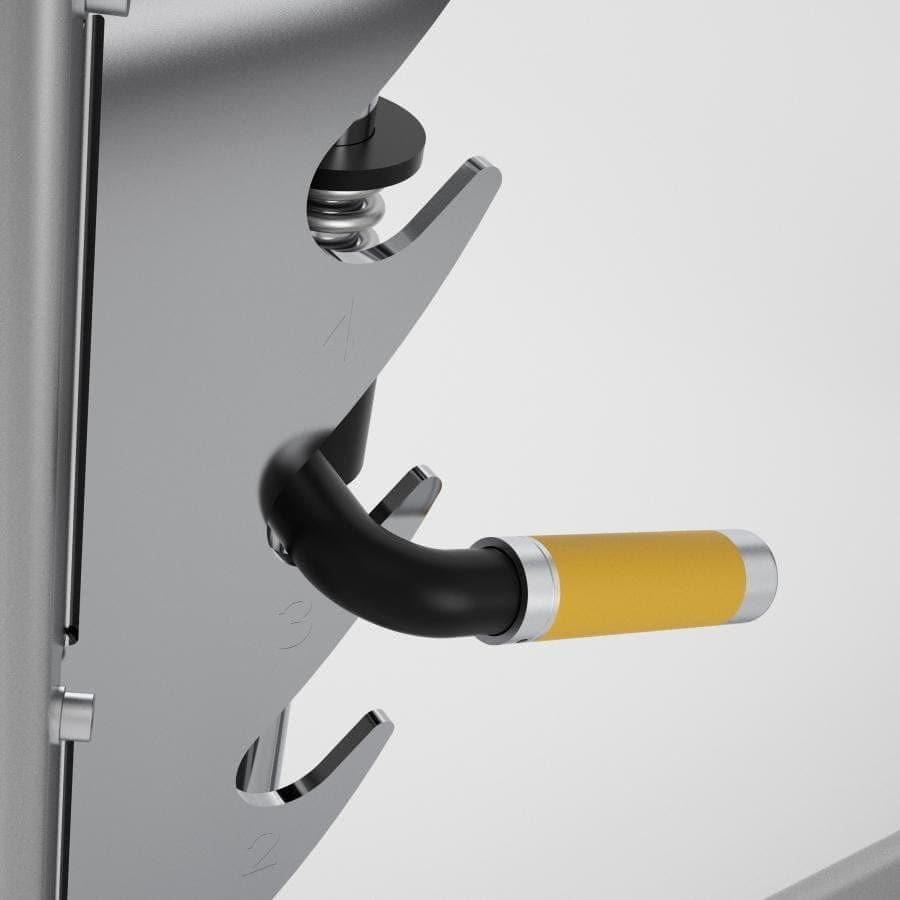

| Adjustments | 16 Bar hooks @ 4 in / 102 mm increments |
| Bolt Down Capability | Yes |
Equipment Specifications
| Grip Diameter | 1.375 in / 35 mm |
| Frame | The frame is 11 gauge (.120”) 6x2-inch trapezoidal steel tubing electro-welded to 4.55x2.28x.113-inch thick bent flat oval steel tubing. The weight bar is 4130 cold drawn seamless steel tube, 1.375” diameter x .095” thick. |
| Standard Frame / Movement Arm or Carriage Colors |
Frame: Black Pearl; Movement Arm: Metallic Ash Frame: Gloss Metallic Silver; Movement Arm: Metallic Ash |
| Stocked Upholstery Colors | All Spice, Black, Grey |
| Additional Upholstery Options (Additional lead time applies) | American Beauty, Blue Jay, Burgundy, Deep Clay, Hunter Green, Navy, New Purple, Regal Blue, Slate |

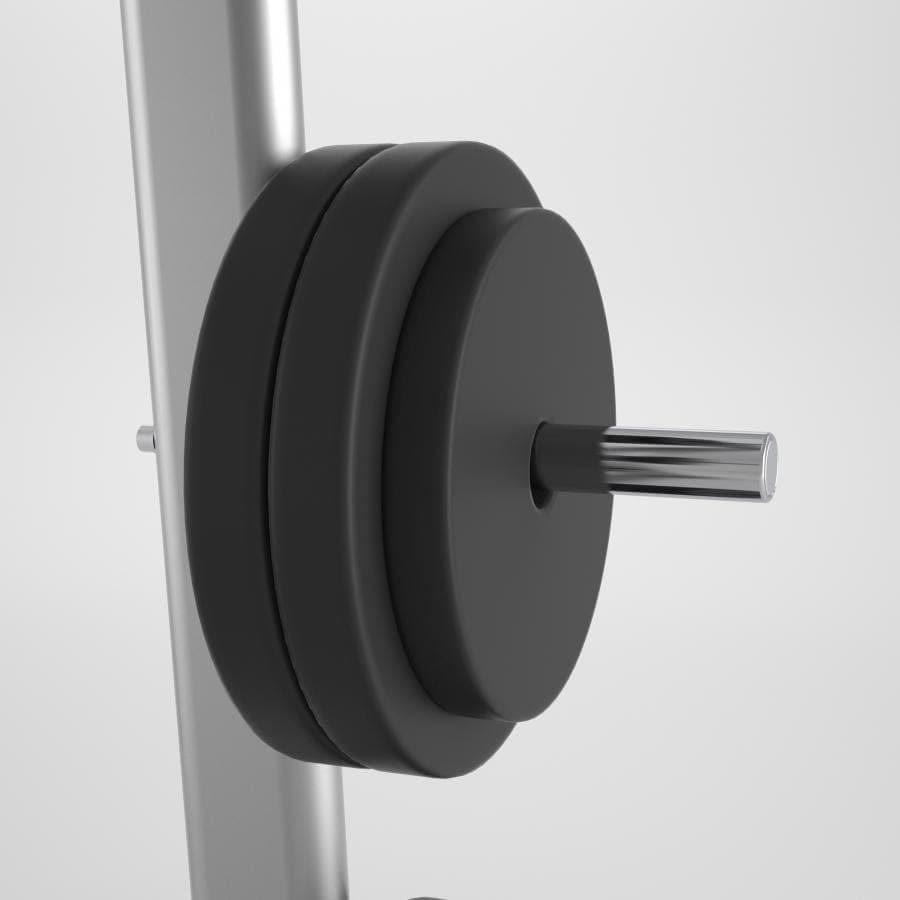

| Weight Storage Horns | Six Storage horns at 10 in / 25 cm length each (three per side) |
| Max Load Weight | 600 lb / 272 kg |
| Starting Weight | 25 lb / 11.3 kg |
Equipment Dimensions and Weight
| Length | 56 in / 142 cm |
| Width | 84 in / 214 cm |
| Height | 90 in / 229 cm |
Shipping Dimensions and Weight
| Length | 56 in / 142 cm |
| Width | 84 in / 214 cm |
| Height | 90 in / 229 cm |
| Shipping Weight | 395 lb / 179 kg |
