Freemotion b22.9 CoachBike™ - Demo Model
Freemotion b22.9 CoachBike™ - Demo Model
Engage with the immersive cycling experience that keeps you coming back for more. With auto-adjusting technology that matches the incline and decline of the on-screen terrain the Freemotion b22.9 CoachBike™ delivers an unrivaled immersive experience.
- Thousands of live-streaming and on-demand workouts led by elite coaches
- Stunning 22 inch / 55cm HD Capacitive Touchscreen

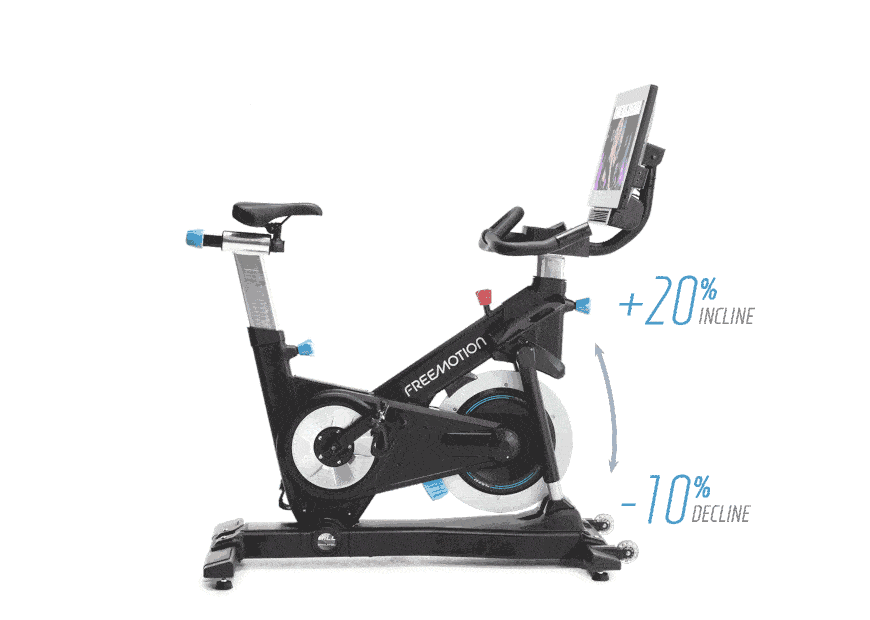

- Immersive tech adjusts bike to 20% incline and -10% decline
- SMR Silent Magnetic Resistance System

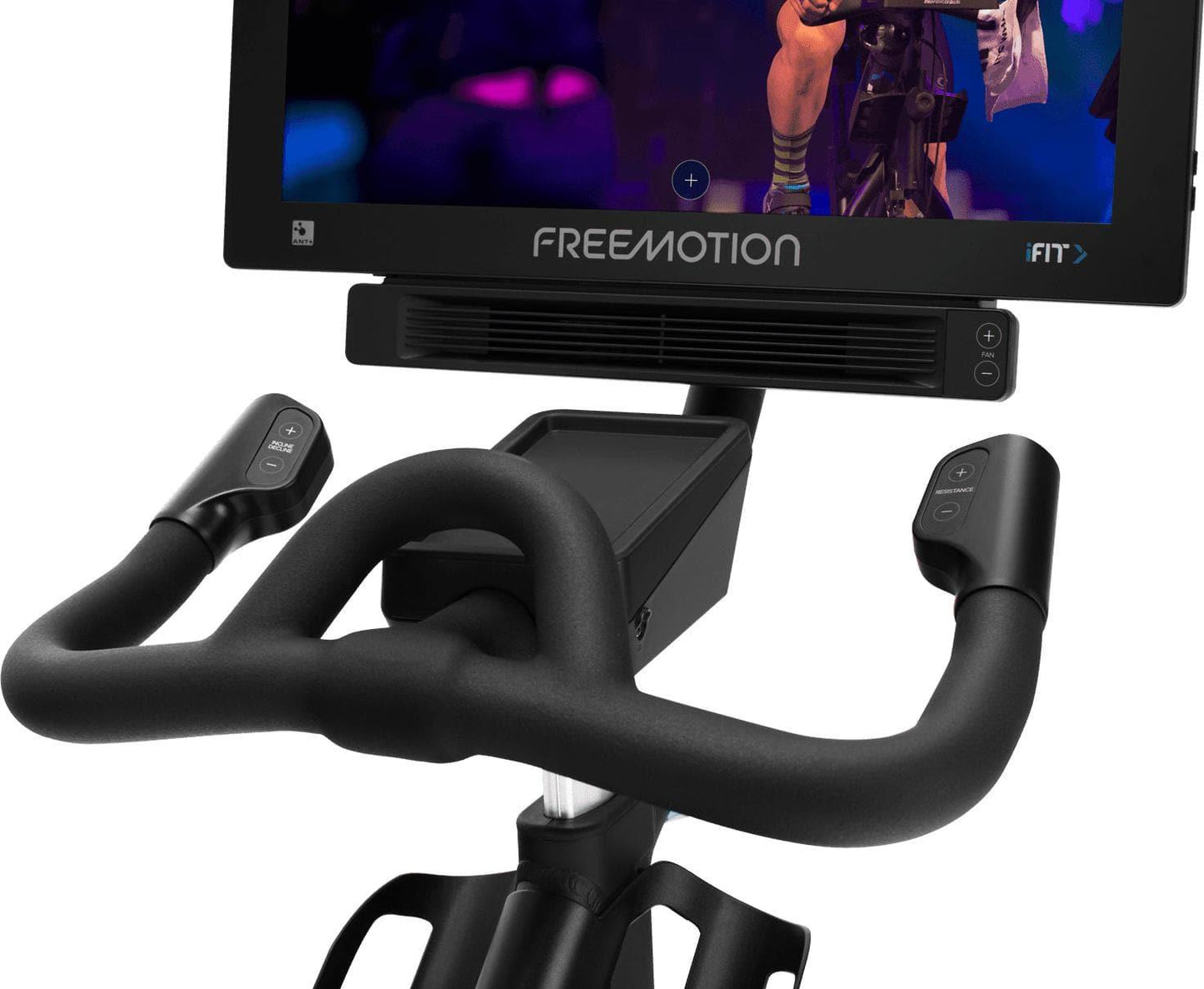

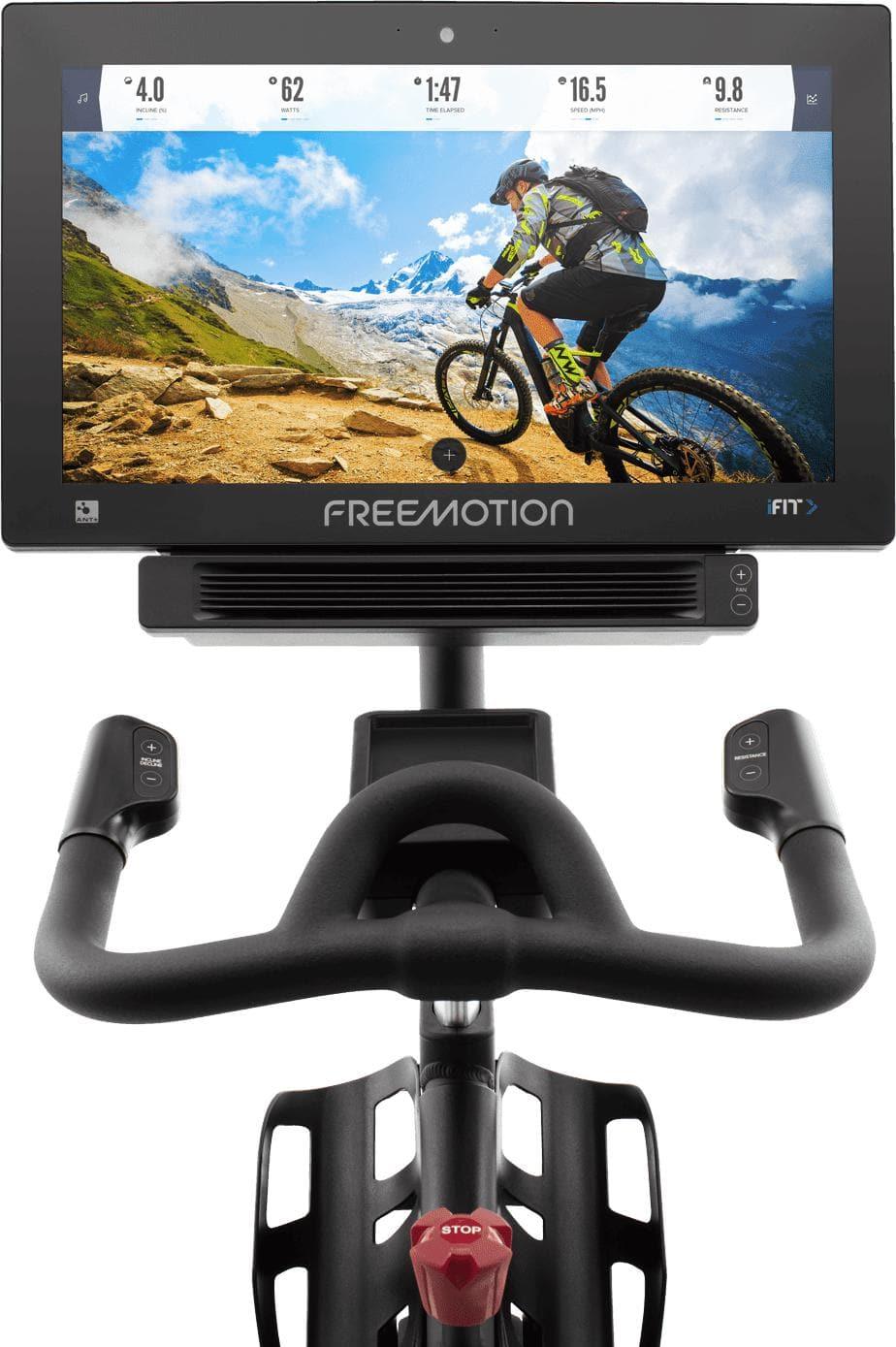

HIGH-DEFINITION DISPLAY
Immerse yourself in visually stunning imagery while working out in exotic locations around the globe, or watch a favorite TV program on this high-definition 22 in / 55 cm capacitive touchscreen.

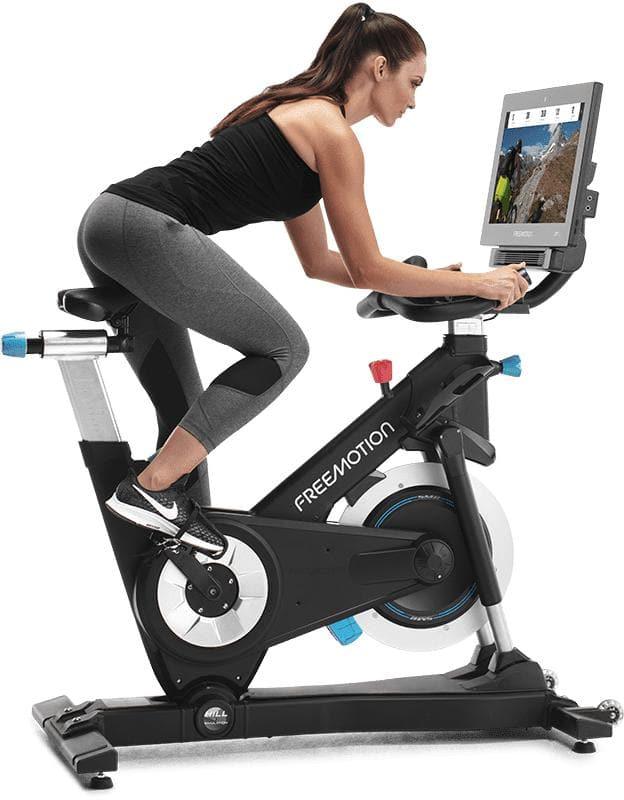

ACCESSIBLE AND ENGAGING SOLUTION
Participate in the high-intensity studio classes you’ve always wanted, now with a cardio machine that works for your body. With a Step-Thru™ design and ergonomically engineered seat, you have the equipment to thrive.
[SPECIFICATION]
CONSOLE FEATURES
- Display Type: Adjustable 22 in / 55 cm High-Definition Capacitive Touchscreen
- Resolution: 1080p ISP LCD Screen

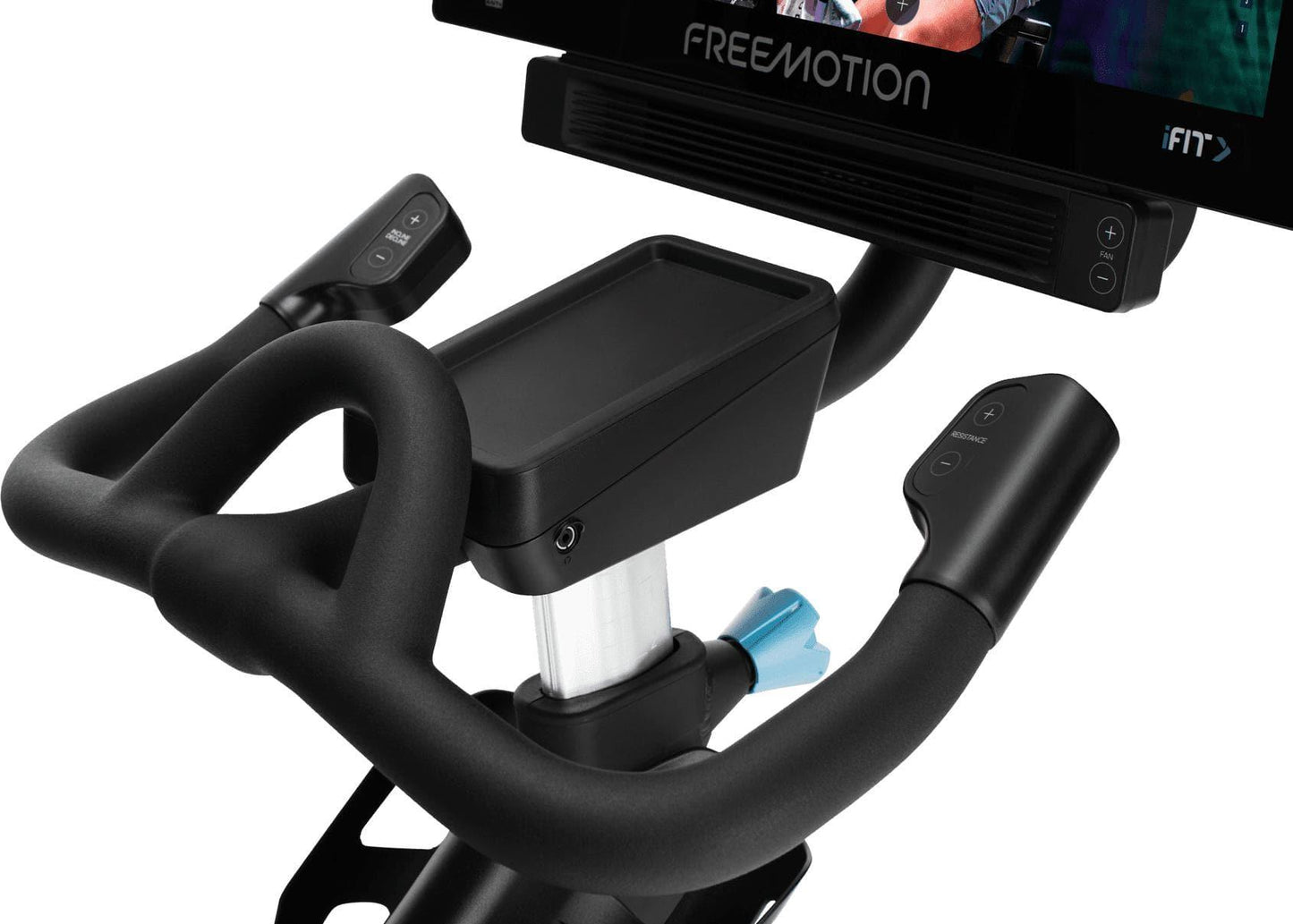

- Controls: Touchscreen, On-handle Digital Controls
- Workout Metrics: Speed, Incline, Distance, Vertical Meters, Calories, Calories/Hour, Heart Rate, Average Heart Rate, Pace, Elapsed Time, Time Remaining, Time of Day
- Number of Programs: Thousands of Global Workouts and Studio Classes with iFIT
- Preset Programs: Limitless iFIT Training Options
- Google Maps: Enabled
- Console Language(s): English
- Featured Languages: EN, also DE, ES, FR, IT, PT, RU, ZH
- Maximum Workout Time: 99:59 (99 Minutes + 59 Seconds)
- Maximum Pause Time: 60 Seconds
- Additional Options: N/A
ENTERTAINMENT
- TV Tuner: N/A
- Closed Captioning: N/A
- Optional Upgrades: N/A
CONNECTIVITY
- Recommended Internet Connection: Dedicated Ethernet - Cat 6
- Ethernet Requirements: Cat 6 Preferred (Cat 5e or higher required)
- WiFi Connection: 2.4 / 5 GHZ (Dedicated Ethernet Strongly Recommended)
- WiFi Minimum Requirements: 10 Mbps for one unit, 6 Mbps/unit for 2-3 units, 4 Mbps/unit for 4-6 units, 3 Mbps/unit for 7 or more units
- Video Connections: HDMI Input
- Audio Connections: 3.5 mm Audio Out, Bluetooth
- CSAFE: N/A
- ECOFIT: N/A
PRODUCT FEATURES
- Drive System: Direct Drive Flywheel w/ Manual Brake
- Crank & Axle: 3-Piece Crank
- Drive Belt: Gates Carbon GT Belt Drive System

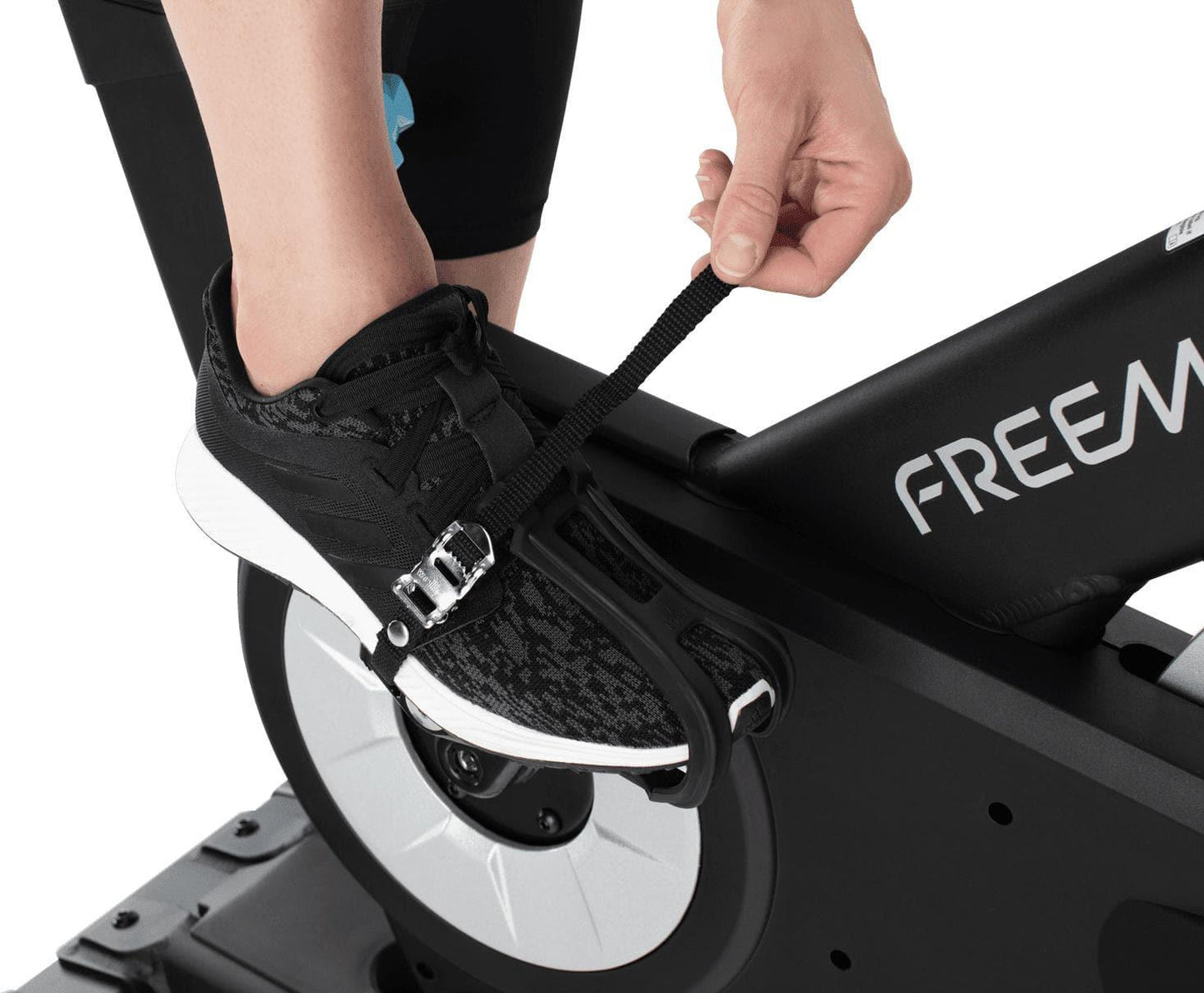

- Pedals: Dual-sided pedals (SPD and strap)
- Gear Ratio: N/A
- Resistance System: SMR™ Silent Magnetic Resistance
- Elevation System: -10% decline to +20% incline
- Emergency Stop: Manual Flywheel Break
- Heart Rate Monitoring: ANT+ and Polar Compatible
- Workout Fan: CrossFlow™ 3-Speed, 8 in / 20.3 cm Fan with AutoBreeze™
- Accessory Charging: USB Charging Port
- Accessory Holder(s): Dual Water Bottle Holders, Secure Phone Holder
- Handlebars: Height Adjustable

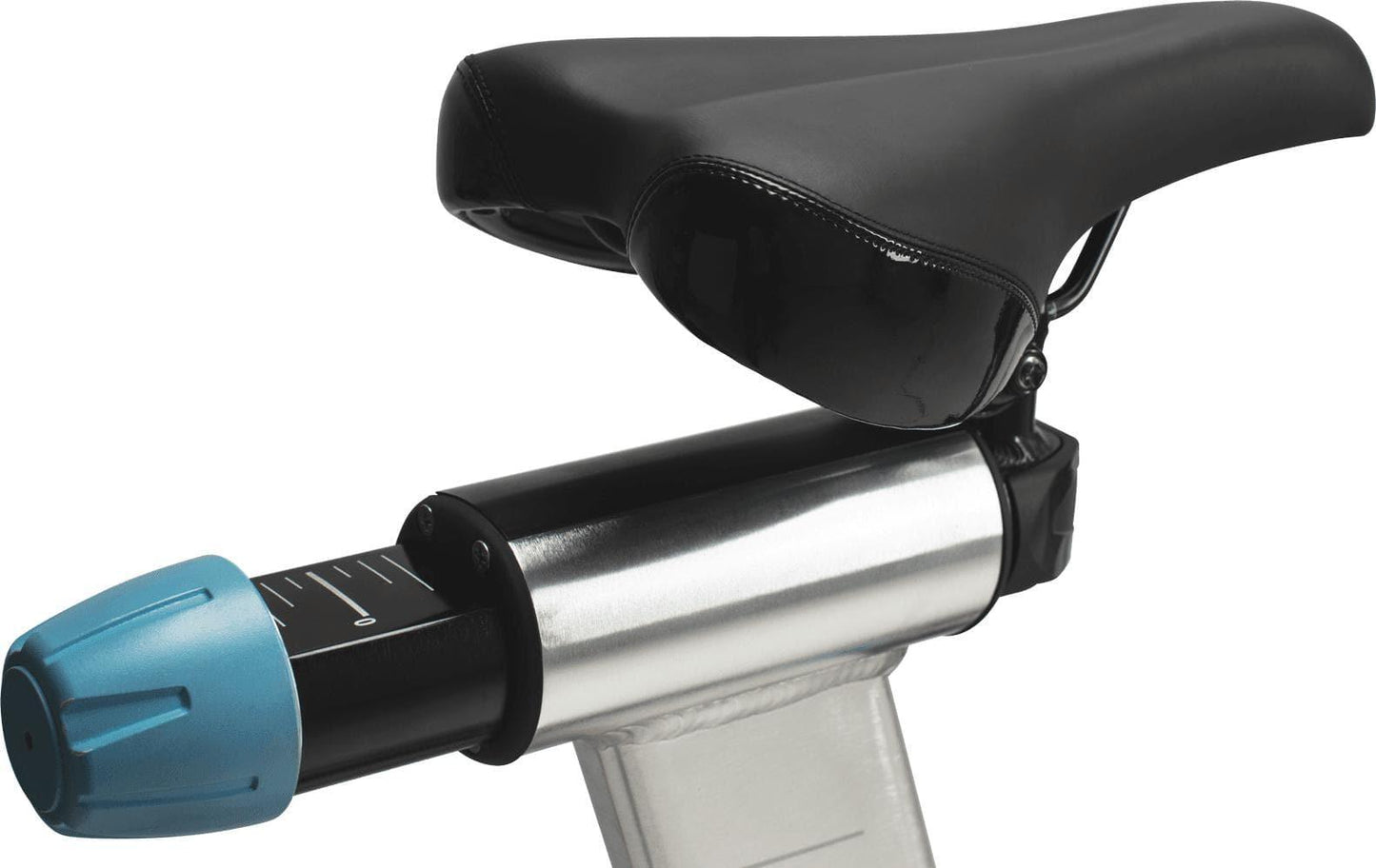

- Seat: Ergonomic padded saddle with fore and aft adjustments
- Frame: Lightweight, Corrosion-Resistant Aluminum Frame
- Positioning: Large Adjustable Leveling Feet
- Transport Wheels: Front-Mounted Transport Wheels
- Color Options: N/A (Flat Black is standard color)
- Unit Options: N/A
-
Power Options: 110-120 VAC, 3 Amp
220-240 VAC, 1.5 Amp - Power Cord Storage: Under Unit
PRODUCT SPECIFICATIONS
- Maximum User Weight: 350 lb / 159 kg
- Flywheel Weight: 41 lb / 18.7 kg
- Resistance Levels: 1-24 Levels of Resistance
DIMENSIONS & WEIGHT

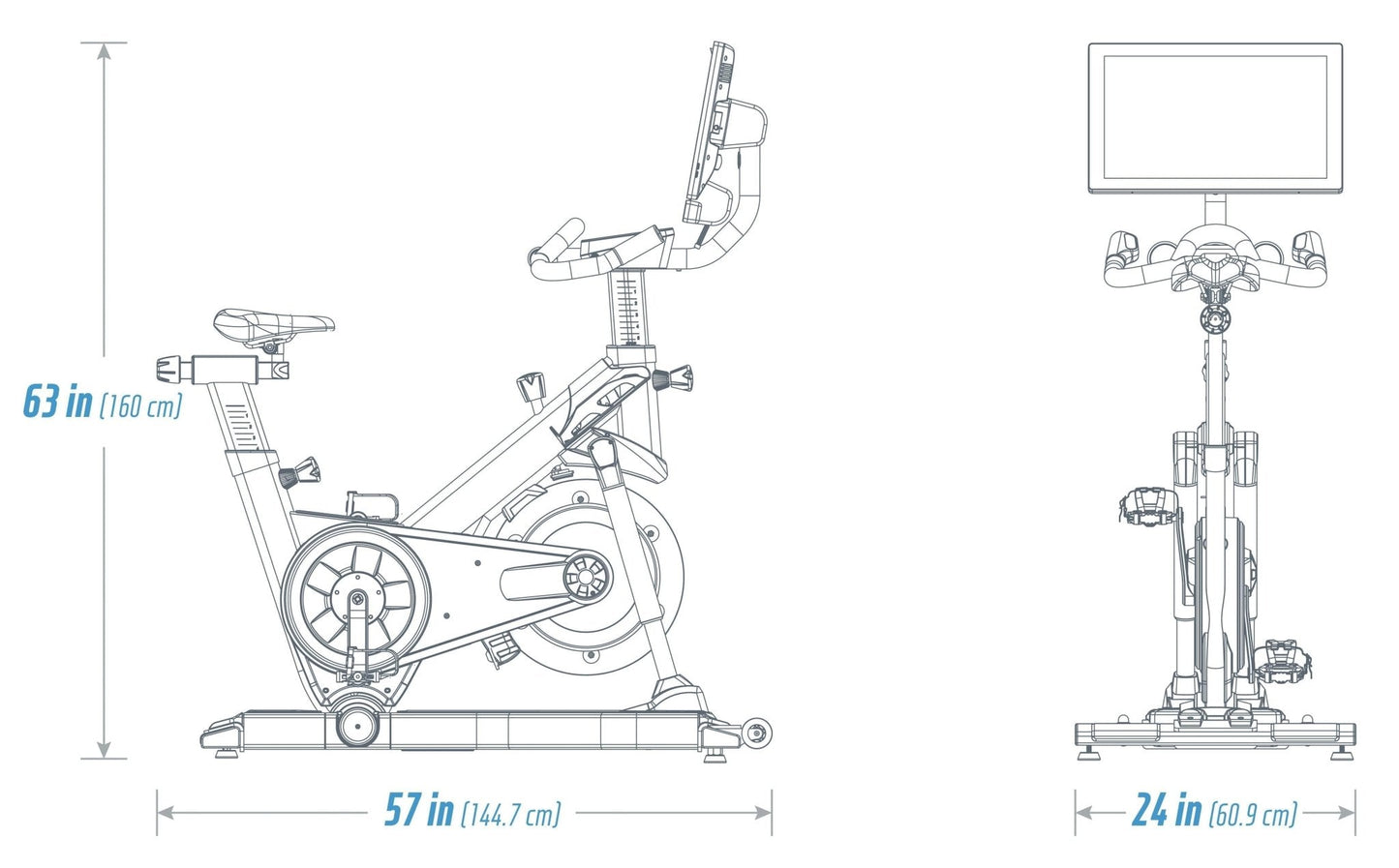

- Product Dimensions L x W x H: 56.5 x 24 x 61.5 in / 143.5 x 61 x 156.2 cm
- Product Weight: 168 lb / 76.2 kg
- Shipping Dimensions L x W x H: 48.5 x 18.5 x 38.5 in / 123.2 x 47 x 97.8 cm
- Shipping Weight: 194 lb / 88 kg
POWER REQUIREMENTS
- U.S. & Canada: 110-120 VAC, 3 Amp
- International: 220-240 VAC, 1.5 Amp
CERTIFICATIONS
- cTUVus, FCC/IC, BQB
